Digital Oscilloscope with Portable Design and Signal Analysis

Compact Design for Easy Use

This portable digital oscilloscope is intended to facilitate the observation and analysis of electronic signals in a convenient format. Its handheld design may help with educational tasks, diagnostics, or troubleshooting without requiring a larger benchtop model.

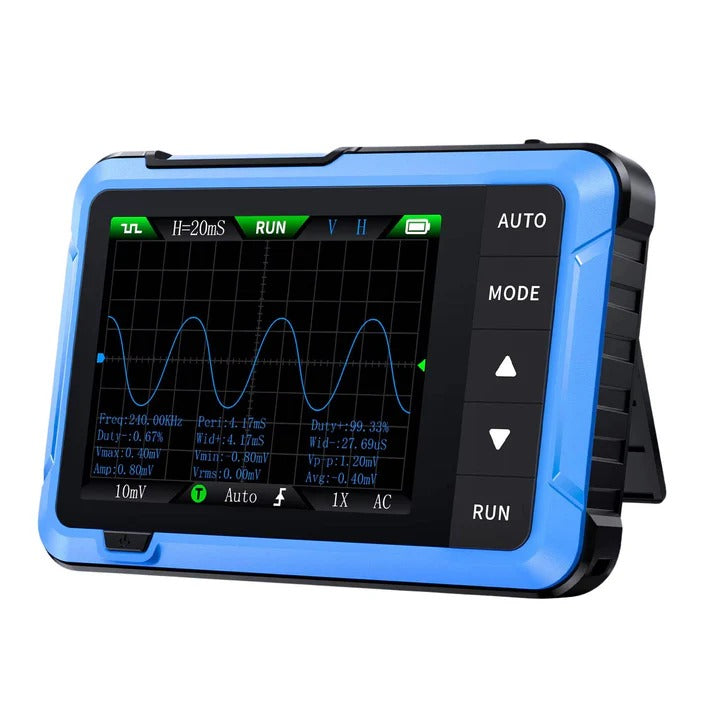

Clear Display for Waveform Data

The oscilloscope comes equipped with a 2.8-inch LCD screen designed to present waveform information during operation. It features an automatic setup function that assists in capturing signals by adjusting settings based on the detected input automatically.

Versatile Model Options Available

Two distinct models are available to meet varying user needs. The Standard model is intended for basic signal observation and educational purposes, while the Pro version offers enhanced sampling rates and bandwidth for more advanced signal analysis tasks.

Robust Features for Signal Analysis

This oscilloscope is designed to include protective circuitry to handle various input voltages safely. The actual performance and protection capabilities may differ based on specific conditions and proper usage, ensuring reliability during operation.

Feature Description

• COMPACT DESIGN: This oscilloscope is crafted for portability, allowing for easy handling and use in various environments.
• LCD DISPLAY: The device features a 2.8-inch LCD that shows waveform data clearly during operation.
• AUTOMATIC SETUP: It includes a function that automatically adjusts settings for signal capture based on input detection.
• MODEL VARIANTS: Two models are offered, catering to both basic and advanced signal analysis needs.
• PROTECTIVE CIRCUITRY: The oscilloscope is designed with circuitry to manage a wide range of input voltages effectively.

Product Specifications

• Display: 2.8-inch HD LCD with a resolution of 320x240 pixels
• Maximum Voltage: Capable of handling voltages up to ±400V
• Battery Duration: Designed to last approximately 4 hours with a 1000mAh battery
• Trigger Modes: Features Single, Normal, and Auto trigger settings
• Standard Specs: Offers a sampling rate of 5MS/s with a bandwidth of 1MHz
• Pro Specs: Enhanced capabilities with a 48MS/s sampling rate and 10MHz bandwidth
• Generator Frequency: Standard model supports up to 10KHz, while Pro supports 50KHz

What’s Included

• Package contains: Digital Oscilloscope, Alligator Clip Probe, Charging Cable, Lanyard, User Manual

Frequently Asked Questions

What distinguishes the Standard model from the Pro model?
The Pro model offers a higher sampling rate and bandwidth, making it suitable for more complex signal analysis tasks. Performance may vary based on specific applications.

What is the expected battery life?
The oscilloscope is designed to operate for up to 4 hours on a full charge. Actual usage may affect battery life based on settings and usage patterns.

Is this oscilloscope suitable for high voltage applications?
This device includes circuitry intended for safe measurement of higher voltages within specified limits. Users should carefully follow instructions to ensure compatibility.

Does the oscilloscope feature an auto-set function?
Yes, it includes an automatic setup feature to assist with basic signal display configuration. Effectiveness may depend on the characteristics of the signal being measured.
